Cnc lathe > Slant-bed > Hydrulic turret ( Box way) > BT-20/30 series

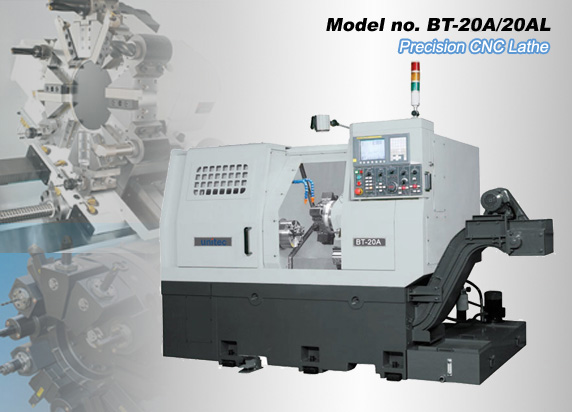

Quick turn BT-20 series
The 30 slant bed construction assures high accuracy and high rigidity for heavy duty cutting.
An unique torque-rib structure provides high rigidity for heavy cutting and enlarge the tool life.
All structural parts are manufactured from high quality meehanite cast iron and stress relieved for deformation - free results.
New slide ratio design. Facilitates heavy cutting quality and high response.
High strength hardness guide and low resistance design provide perfect cutting surface.
Transmission with low thermal and low preload ball screw provide higher rigidity control.
